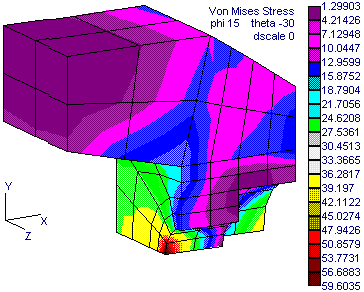

Quarter model of a clamp under tension - Von-Mises stress contours

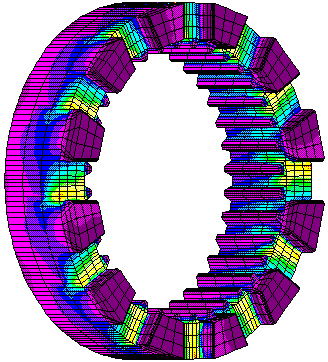

Tresca stress contours on hidden view of gear under multiaxial loading

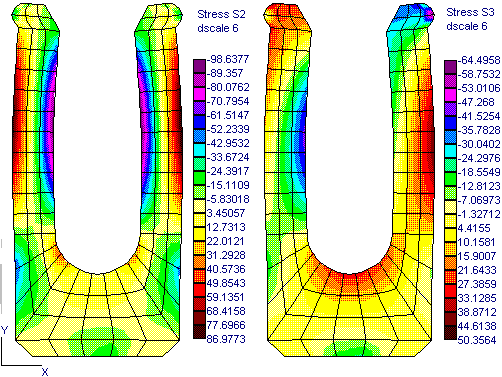

Axial and hoop stress contours of an axisymmetric, metal annular seal under
pinch and pressure loading

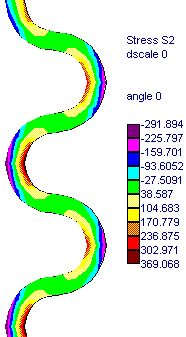

Close-up of axial stresses in a bellows under a bending moment

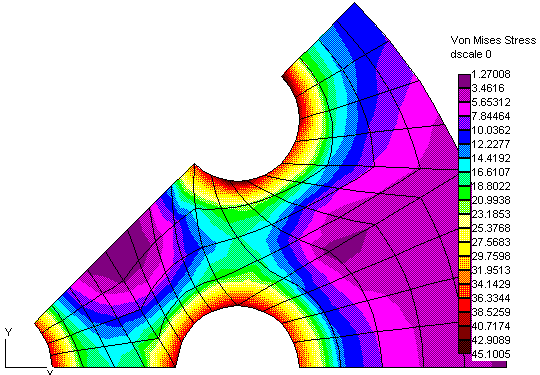

Tubeplate with holes pressurised. Constraint equations are used for the 45
degree slope

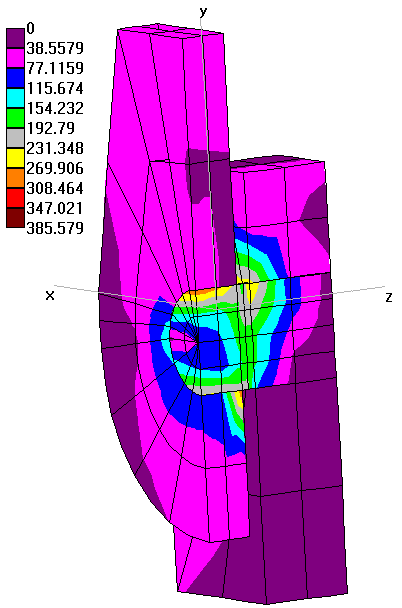

A clevis-pin assembly after contact analysis
